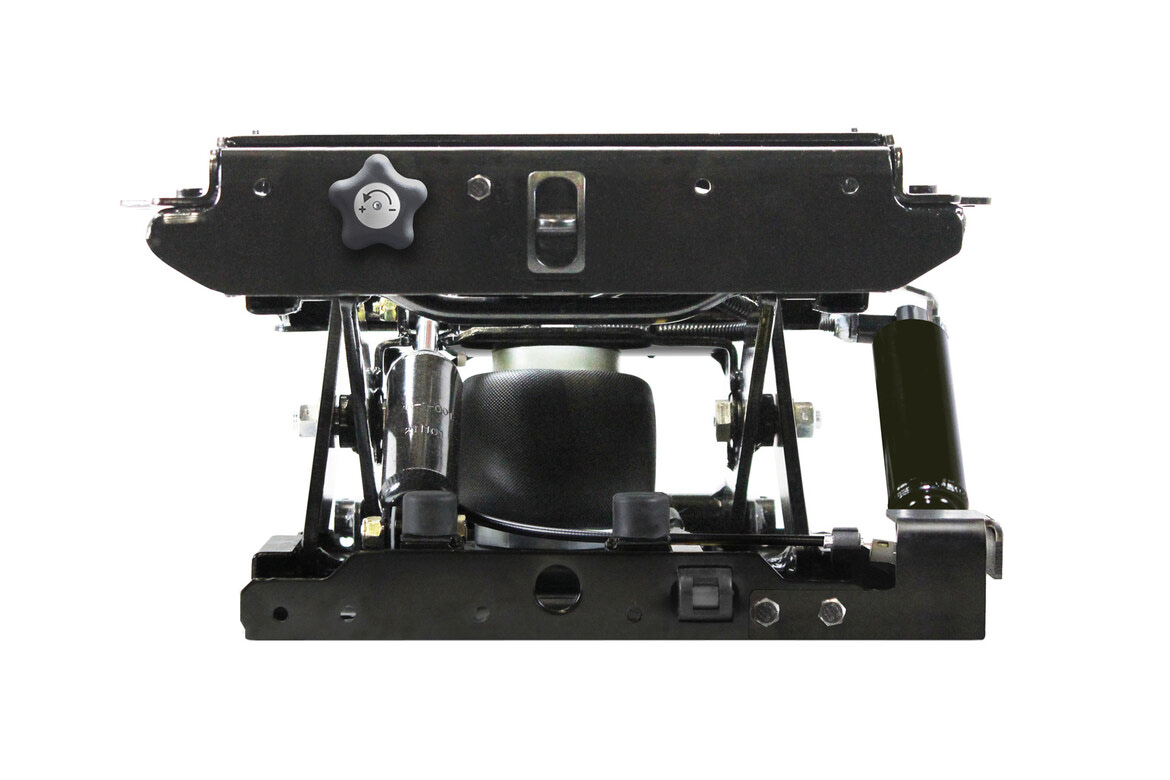

S078CAD 12V Air Suspension with Double Damper (One Adjustable)
Features
- Heavy Duty Air Ride Suspension
- 12 Volt Compressor Included
- Up to 190kg (418lbs) Manual Weight Adjustment
- 100mm (4”) Suspension Stroke
- Double Damper (One Adjustable)
- Suspension Cover
Bolt Pattern (Top of Suspension)
- Side to Side Top Mount 330mm (13”)
- Front to Back Top Mount 155mm (6”), 261mm (10”), 355mm (14”)
Bolt Pattern (Bottom of Suspension)
- Side to Side Bottom Mount 260mm (10.25”)
- Front to Back Bottom Mount 246mm (10”), 292mm (11.5”), 325mm (13”)
Industry Standards
- Operator Seat Vibration: ISO 7096
Suitable for Many Applications.
Photo Gallery
S078CAD 12V Air Suspension with Double Damper (One Adjustable)
CA$1,276.00
“
“In 40 years of trucking, this is, without a doubt, the MOST comfortable seat I’ve ever had in a commercial vehicle. Since switching to the Convoy 2, my back feels great and I rarely need to visit my chiropractor.“
Moe
(Power Crane)
