Direct Air Convoy I – Ford Medium Duty Base

Feature Sheet

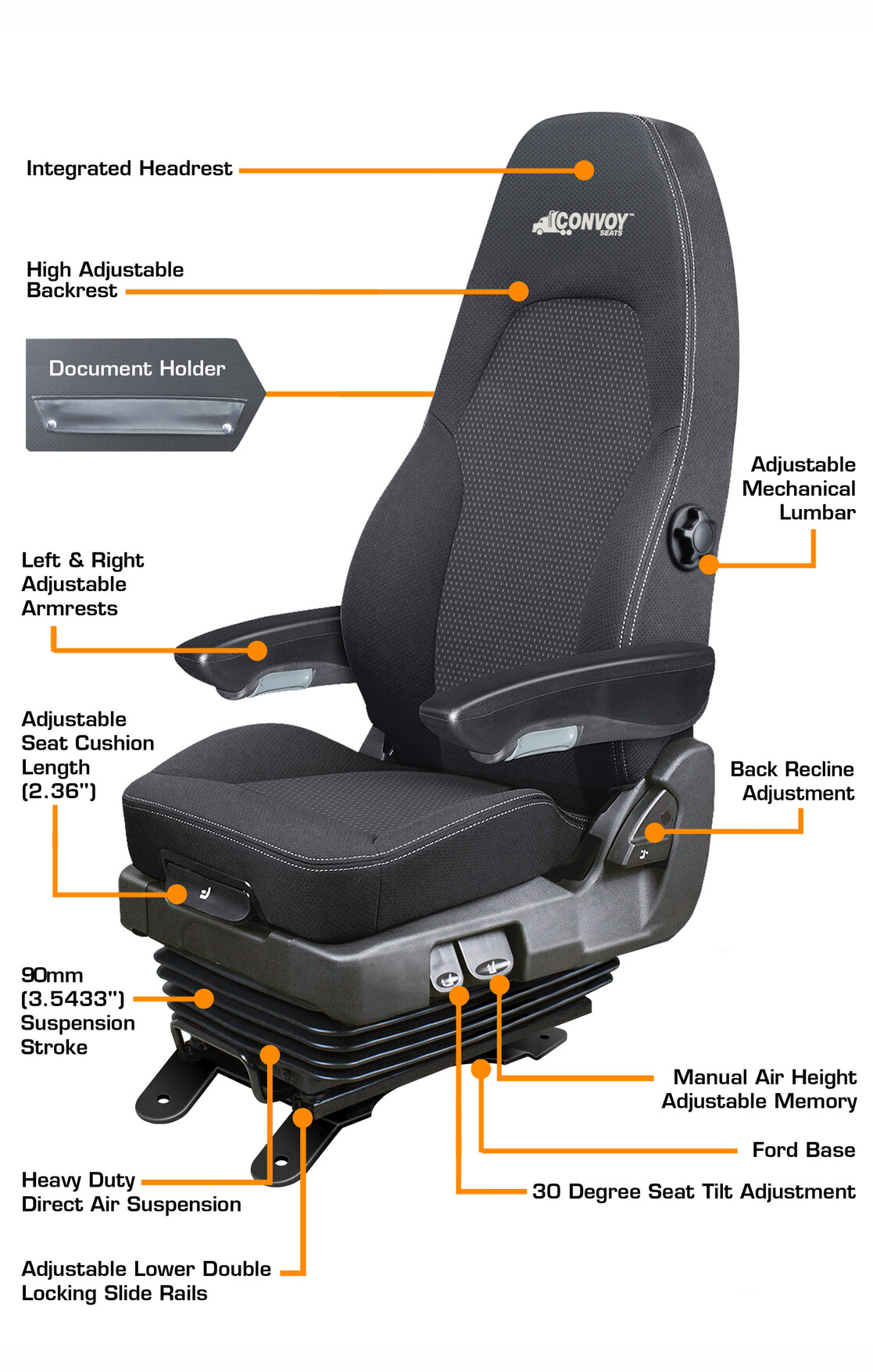

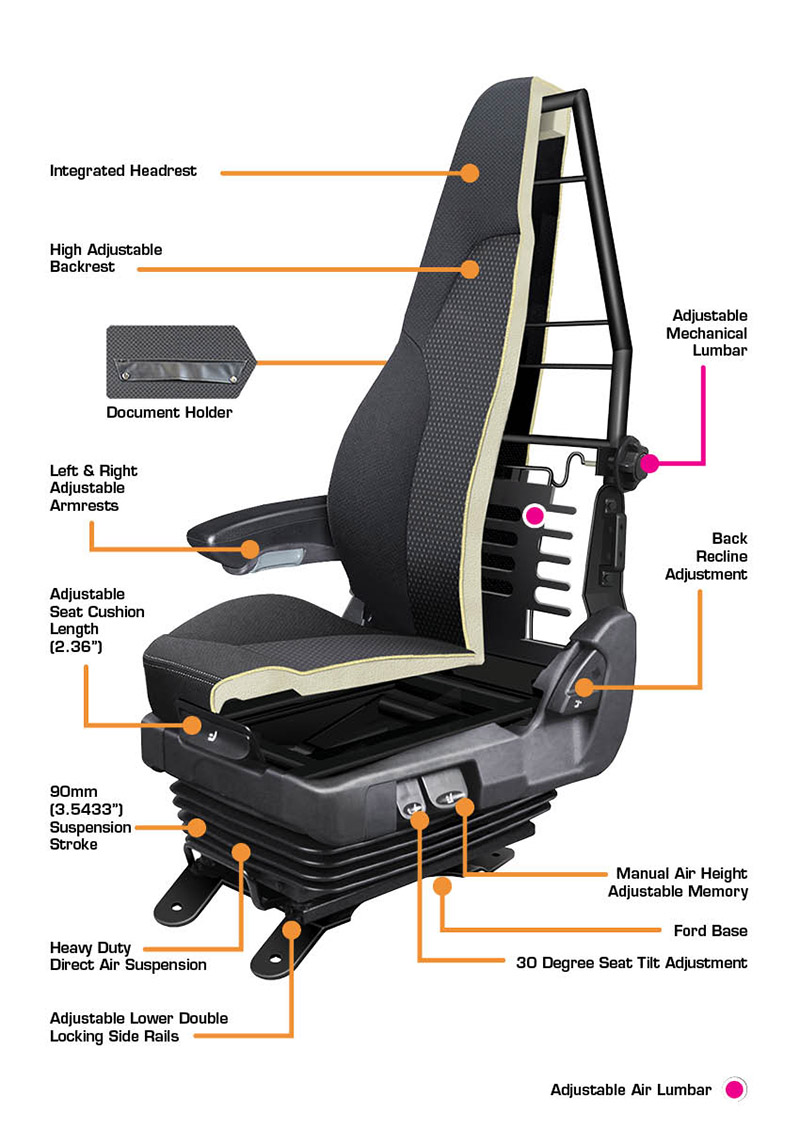

Features

  • High Adjustable Backrest with Integrated Headrest
  • Left Hand Side Control Functions
  • Adjustable Double Locking Slide Rails
  • Adjustable Mechanical Lumbar
  • 30 Degree Seat Tilt Adjustment
  • 90mm (3.5433”) Suspension Stroke
  • Adjustable Seat Cushion Length 60mm (2.36”)
  • Document Map Pocket
  • Heavy Duty Direct Air Suspension
  • Left & Right Adjustable Armrests
  • Manual Air Height Adjustable with Memory
  • Ford Medium Duty Specific Base
  • Air Supply Required

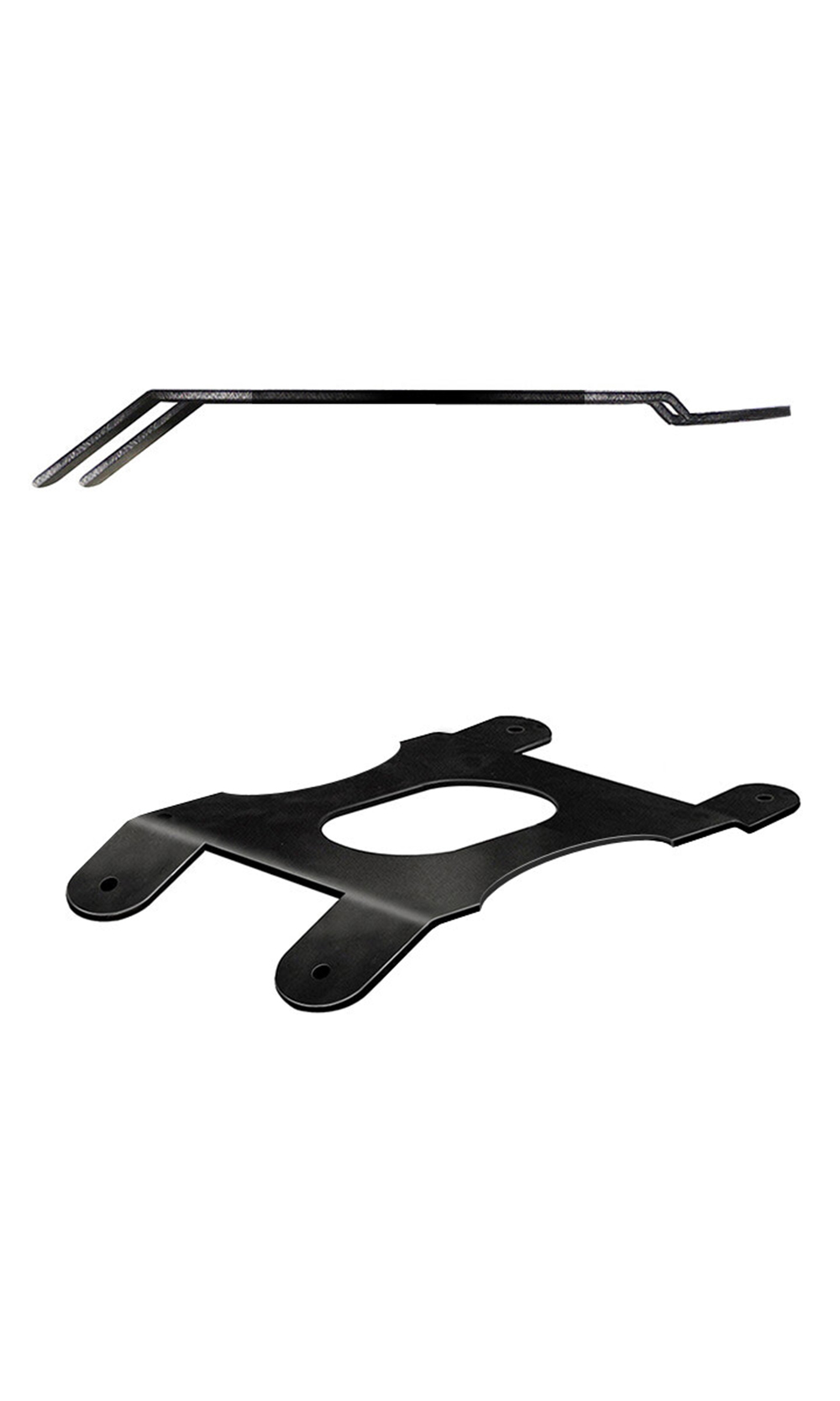

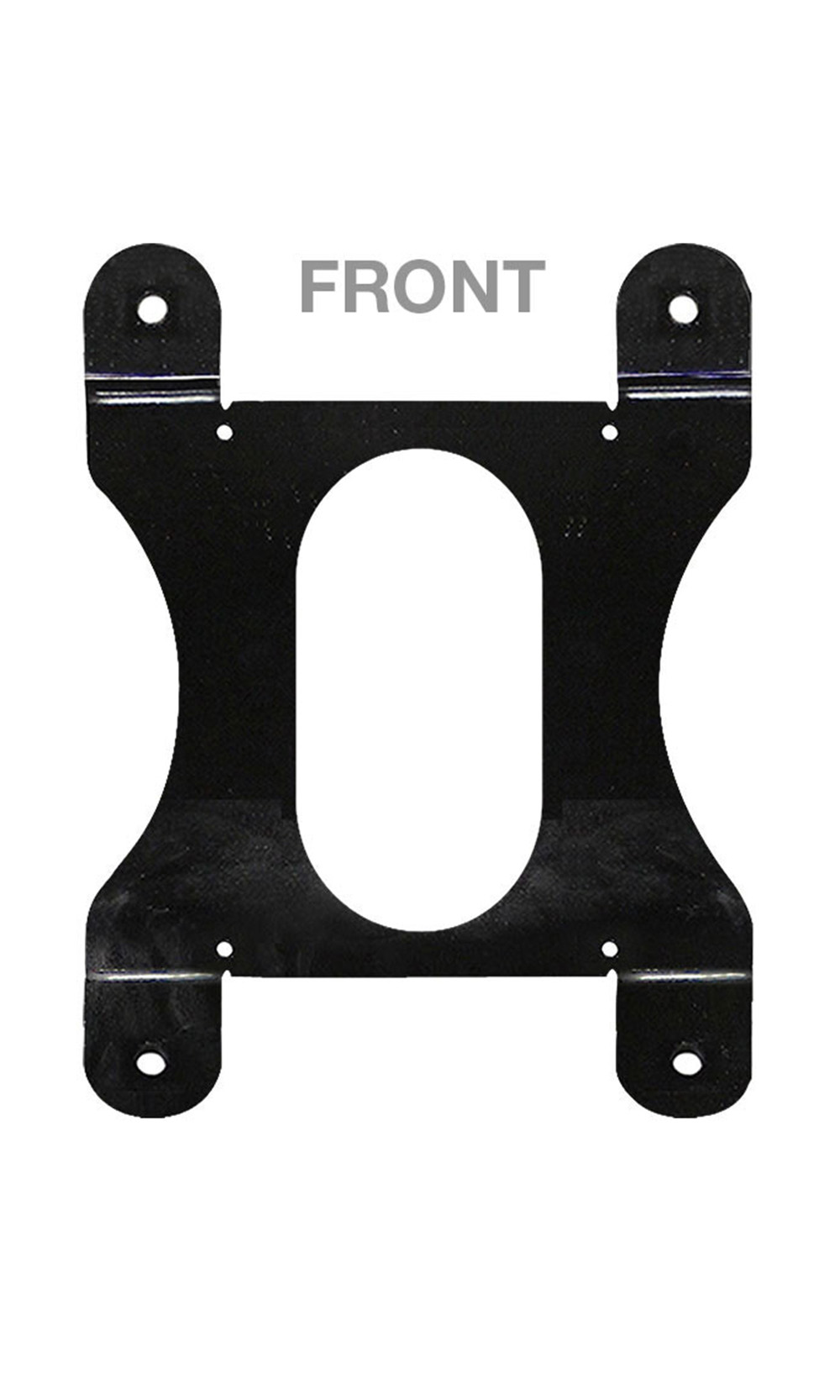

Bolt Pattern

  • Base Height – 64mm (2.46”)
  • Side to Side – 292mm (11.50”)
  • Front to Back – 407mm (16.02”)
  • Compatible with Ford F250-F750 (Year 1999-2010)

Options

  • 12-Volt Seat & Back Cushion Heater Kit – 830286
  • Contact One Of Our Seating Specialists For More Details

Direct Air Convoy I – Ford Medium Duty Base

From: CA$1,000.00

Compatible with Ford F250-F750 (Year 1999-2010)
